Ⅰ 、Scope of application

This  instrument  is  suitable  for  chemical  enterprises,  scientific  research  institutes,  colleges  and universities, etc. It is widely used in the determination of heat deformation temperature (HDT) and Vicat temperature (VST) of thermoplastics, hard rubber and long fiber reinforced composite materials.

Ⅱ 、Compliant standards：

GB/T1633-2000《Plastic-Thermoplastic materials-Determination of Vicat softening temperature(VST)》

ISO306-2004(E)Plastic-Thermoplastic materials-Determination of Vicat softening temperature(VST)Translation

GB/T1634-2004  《Plastic-Determination of temperature of deflection under load》

ISO 75 -2004(E) Plastic-Determination of temperature of deflection under load translation    GB8802《Determination of Vicat softening temperature for unplasticized polyvinyl chloride (PVC-U) pipes and fittings》

ASTM D 1525-1991 Standard Test Method for Vicat Softening Temperature of Plastics translation ASTM D648-06 Test method for deflection temperature of plastic under flexural load translation

Ⅲ 、Main technical parameters and accuracy

1 、Temperature control range：Room temperature~300℃

2 、Temperature measurement accuracy：±0.5℃

3 、Uniform heating rate：

A velocity：5 ±0.5℃/6min

B velocity：12±1.0℃/6min

4 、High precision digital dial indicator accuracy：±0.003mm

5 、Deformation measurement range：0~3mm

6 、Deformation measurement accuracy：±0.005mm

7 、Softening point (Vicat) test maximum load：GA= 10N ±0.2N；GB=50N ±1N

8 、Hot deformation bending normal stress:

Method A：1.80Mpa ; Method B：0.45Mpa; Method C：8.00Mpa

9 、Max heating power：4000W~6000W

10 、Power supply：AC     220V    50HZ

11、Span：64mm 、100mm

12 、Placement method：The sample can be placed horizontally or sideways.

13、Cooling method：Natural-cooling、water-cooling（Other cooling methods to be discussed）(Can be equipped with external refrigerator for fast cooling.)

14、Heating medium：Methyl-silicone oil（Equipped by user，viscosity within 200cst，flash point 300℃)

15 、Equipment dimension:(L*W*H)1180*780*1100mm      Packed dimension:1300*900*1400mm

16 、Equipment weight:170kg    Packed weight:190kg

 Ⅳ 、Accuracy level：1

Ⅴ 、Main function features：

This instrument has a beautiful appearance and adopts advanced electronic modular design to ensure stable product quality. The computer tracks data acquisition and data processing in real time. Multiple color curves (see the following page) depict the change process of the  sample. The test process is completely automated, programmed, and humanized.

The test stand and oil tank of this equipment are all made of stainless steel, with small expansion coefficient and high mechanical precision;；

This product has sound and light alarm function, which will give sound and light alarm prompts at each stage of the test and after the test.；

This product has the features of automatic lifting and lowering of the test frame and automatic loading of weights, which is easy to operate and saves time; the heat-averaging system is hidden inside the machine, and the heat-averaging stirring speed is adjustable;

After the test, the instrument can be cooled with tap water, or with a water tank for self-circulation cooling (the instrument is equipped with a circulating pump), or with an external cooling machine for rapid cooling; (the manufacturer can provide the cooling machine, the price is negotiable)

You can also compare the authenticity of the data on the display with the independent digital display device on this instrument, which is more convenient for measurement department to correct the accuracy of the instrument.

The  software  has  the   function  of  storing  and  retrieving   sub   item  data,  as  well  printing  Word reports.Using our company's unique computer program control uniform temperature system.Our company is the first to use this technology in China. The program control uniform temperature heating system for PTC test was successfully manufactured for Zhejiang University. When the deformation of the test is reached, the test is automatically stopped and the temperature value is flashed，to achieve the purpose of prompting.After the test is completed, the software can automatically store and print the test results according to the user's settings, and the graphical display function can display the real-time:temperature - time and deformation - time curve, temperature - deformation curve.

During the test ， in order to prevent  excessive  oil  or oil with  a  large  expansion  coefficient  from expanding and overflowing due to heat,an overflow oil recovery device is specially installed; it has upper limit temperature protection and oil fume exhaust functions; and is easy to operate.

Ⅵ 、Main configuration

Ⅶ 、Advantage：

1 、The first company to develop and produce this instrument 。With patent certificate and qualification certificate, solid core technology, rich experience. Product penetration rate is high, all over the domestic industries.

2 、Full automatic mechanical host：Program control automatic lifting, automatic weight loading, automatic sound and light alarm.

3 、The high temperature heating part of the main machine is made of high strength and small deformation stainless steel.The test results were closer to the real value. It can also be cooled quickly, shorten the cooling time, and increase the number of experiments.

4 、It is the first device in China to realize computer control.The software has been continuously upgraded, the operation interface is easy to understand, the operation is convenient and flexible.

5 、Equipped with high sensitivity and high stability capacitive grid digital display meter.Make the sample small changes can be seen.

6 、A variety of combination types and functional choices, make your experiment more perfect.

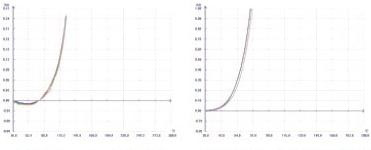

Thermal deformation--Temperature test curve    Vicat deformation--Temperature test curve

This reference chart is an example of a Vicat thermal deformation curve
