Model GZRM-XI45

Economical and simple design Xenon lamp aging instrument, With all the advantages of XⅡ series products. Equipped with 4500W water-cooled xenon lamp, the exposure test area is 2188cm2.

Model GZRM-XII 65

Medium-sized accelerated aging tester that complies with international testing standards, equipped with a 6500W water-cooled xenon lamp, the exposure test area is 6500cm² .

Model GZRM-X II75

Medium-sized accelerated aging tester that complies with international testing standards,equipped with

7500W water-cooled xenon lamp, exposure test area of 7500cm². It can do more than 180W@300-400mm irradiance test.

Model GZRM-XII1200

The most advanced accelerated aging tester with the largest sample capacity ，equipped with 12000W water-cooled xenon lamp, exposure test area of 11000cm² .

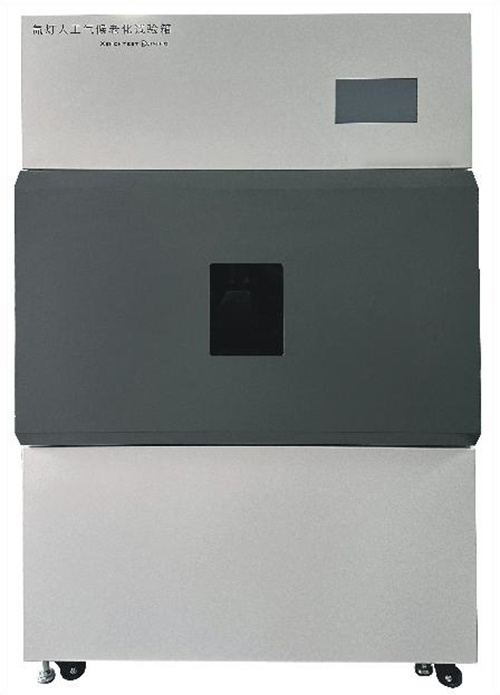

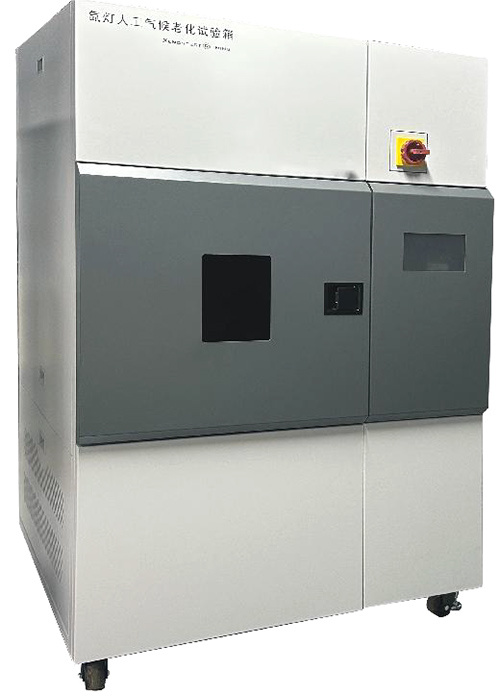

GZRM-XIIseries Xenon arc lamp artificial climate aging test chamber

Technical features and indicators:

1 、Rotary drum test stand ，Fully and evenly expose to each sample.

2、Optional narrow wavelength 340nm, 420nm or wide wavelength 300～400nm.Light irradiance automatic control system,and real-time monitoring and display function.Meet all test requirements worldwide.

3 、High irradiance control：The control light irradiance can reach 2 solar or higher levels.

4 、The light irradiance is adjustable, controllable and stable.

5 、Sample holder temperature：Blackboard temperature 、The black standard temperature is monitored and controlled in real-time.Good stability and repeatability during the test.

6 、Automatically control the sample environment temperature and sample surface temperature at the same time.(Blackboard temperature, black standard temperature)

7 、Relative humidity control.Can meet global, rigorous test methods.

8、More accurate control of temperature and humidity through the damper actuator.Avoid affecting accuracy and repeatability due to changes in relative humidity and laboratory environment.

9 、Simulate different outdoor test conditions through internal and external filters.

10 、With water quality monitoring, alarm function. It’s a test chamber that meets the global xenon lamp aging test standards：

GZRM-X45, using 4500W water-cooled xenon lamp ，the exposure area is 2188cm²

GZRM-X65, using 6500Wwater-cooled xenon lamp ，the exposure area is 6500cm²

GZRM-X75, using 7500Wwater-cooled xenon lamp ，the exposure area is7200cm²

GZRM-X1200, using12000Wwater-cooled xenon lamp ，the exposure area is11000cm²

Annotation：●Standard configuration        ■Optional configuration

Xenon lamp and metal halogen simulate different conditions

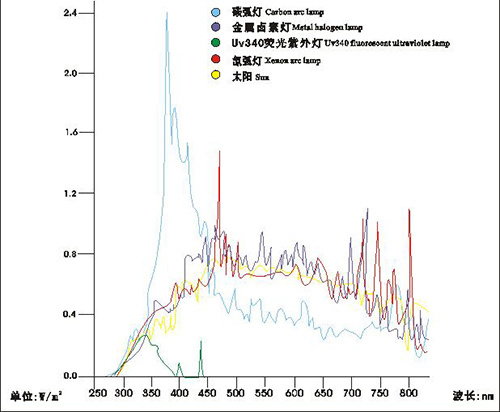

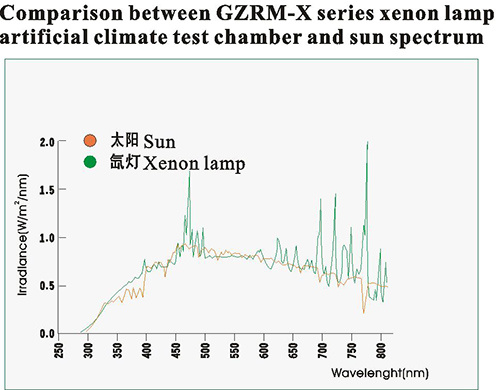

Comparison between solar spectrum and lab light source spectrum

The test chamber is made of high quality stainless steel,Resistant to acid, alkali and high intensity light radiation

Sample holder type：AH-type ，Three layer structure exposure area：

GZRM-X45 series：2188cm², 22 standard sample plate(145mm×70mm)

GZRM-X65series：6500cm², 65 standard sample plate(145mmX70mm)

GZRM-X75 series：7200cm², 72 standard sample plate(145mmX70mm)

GZRM-X1200 series：11000cm², 111 standard sample plate(145mmX70mm)

Test chamber internal test holder
